Copper Sand Cast Alloy (UNS C89831) – Mechanical Properties
Copper UNS C89831 has a copper content of not less than 87%.
The following table shows the mechanical properties of UNS C89831 sand cast alloy as a function of heat treatment.
| Temper | Tensile Str. | Yield Str. | Elong. |
|---|---|---|---|
| M01 | 237MPa (34ksi) | 105MPa (15ksi) | 20% |
Typical uses
Industrial: corrosion-resistant/pressure-tight castings, high-speed/heavy-pressure bearings, impellers, pumps
C89831 Product description: Bismuth tin bronze

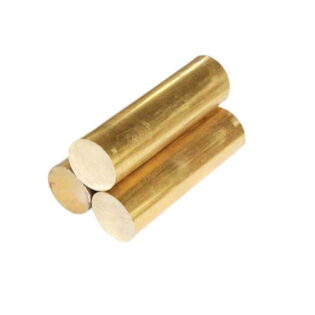

Solids: 1/2″ to 10″ O.D.

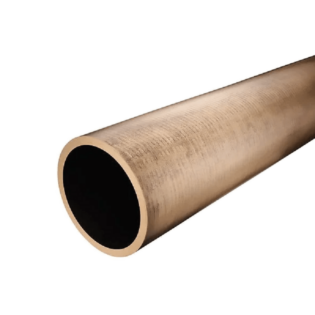

Tubes: 1 1/8″ to 9″ O.D.*
Rectangles: Up to 15″
Standard lengths: 144″
Shape/Form: semi-finished, mill stock or near-net shapes, anode, bar stock, billet/bloom, squares, hex, plate, profile or structural shape, flats/rectangular bar
Compliance: C89831 is compliant with key legislation including (1) Federal Safe Drinking Water Act – SDWA, (2) S. 3874 Federal Reduction of Lead in Drinking Water Act, (3) California AB1953, and (4) Vermont Act 193
*Consult mill for wall thickness
Typical uses
Industrial: corrosion-resistant/pressure-tight castings, high-speed/heavy-pressure bearings, impellers, pumps
Chemical composition
| Cu%1 | Pb% | Sn% | Zn% | Fe% | P | Ni%2 | Al% | Bi% | S% | Sb% | Si% |
|---|---|---|---|---|---|---|---|---|---|---|---|
Chemical composition provided by CDA 10.01-2.0% as any single or combination of Ce La or other rare earth(x) elements as agreed upon. (x)ASM International definition: one of the group of chemically similar metals with atomic numbers 57 through 71 commonly referred to as lanthanides 2Ni value includes Co. Note: Cu + sum of named elements, 99.0% min. Single values represent maximums. | |||||||||||
| 87.00- 91.00 | 0.10 | 2.70- 3.70 | 2.00- 4.00 | 0.30 | 0.05 | 1.00 | 0.005 | 2.70- 3.70 | 0.08 | 0.25 | 0.005 |
Machinability
| Copper alloy UNS No. | Machinability rating | Density (lb/in3 at 68 °F) |
|---|---|---|
| C89831 | 85 | 0.318 |
Mechanical properties
| Tensile strength, min | Yield strength, at 0.5% extension under load,, min | Elongation, in 2 in. or 50 mm min | Brinell hardness (500 kg load) | Remarks | ||
|---|---|---|---|---|---|---|
| ksi | MPa | ksi | MPa | % | typical BHN | |
| 29 | 200 | 13 | 90 | 5 | 55 | |
Physical properties
Physical properties provided by CDA | |||||||||||
| US Customary | Metric | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Melting point – liquidus | 1893 °F | 1033 °C | |||||||||
| Melting point – solidus | 1518 °F | 825 °C | |||||||||
| Density | 0.318 lb/in3 at 68 °F | 8.81 gm/cm3 at 20 °C | |||||||||
| Specific gravity | 8.81 | 8.81 | |||||||||
| Electrical conductivity | 20.38% IACS at 68 °F | 0.117 MegaSiemens/cm at 20 °C | |||||||||
| Thermal conductivity | 50 Btu/sq ft/ft hr/°F at 68 °F | 86.6 W/m at 20 °C | |||||||||
| Coefficient of thermal expansion 68-392 | 10 · 10-6 per °F (68-392 °F) | 17.3 · 10-6 per °C (20-200 °C) | |||||||||
| Specific heat capacity | 0.092 Btu/lb/°F at 68 °F | 385.4 J/kg at 20 °C | |||||||||
| Modulus of elasticity in tension | 13700 ksi | 94458 MPa | |||||||||
Fabrication properties
Fabrication properties provided by CDA | |||||||||||
| Technique | Suitability | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Soldering | Excellent | ||||||||||
| Brazing | Good | ||||||||||
| Oxyacetylene welding | Not recommended | ||||||||||
| Gas shielded arc welding | Not recommended | ||||||||||
| Coated metal arc welding | Poor | ||||||||||
| Machinability rating | 85 | ||||||||||
